Wrangler Plus (Available in 2H or 3H or 4H) - Custom Quotes Available
2 Horse: 7' Tall Inside Height, 7K, Overall Height 8', Trailer Body Length 13' 3", Overall Length 16' 4", Floor Height 14", Empty Weight 2525#, Hitch Weight 375#, Payload Capacity 4475#.
3 Horse: 7' Tall Inside Height, 10K, Overall Height 8' 1", Trailer Body Length 17' 3", Overall Length 20' 4", Floor Height 15", Empty Weight 3350#, Hitch Weight 550#, Payload Capacity 6550#.
4 Horse: 7' Tall Inside Height, 10K, Overall Height 8' 1", Trailer Body Length 19' 3", Overall Length 22' 4", Floor Height 15", Empty Weight 3775#, Hitch Weight 560#, Payload Capacity 6125#.
Standard Options on 2H & 3H & 4H: 6" Roof Radius, 6' 8" Inside Width, 82" Outside Width, 102" Overall Width (Including Fenders), Electro-Galvanized Sheet Metal, Epoxy Primer & PPG Polyurethane Paint, Single Wall Construction, Sealed & Enclosed Diagonal Wall, Plexiglass Head & Kick Walls, 32" RV Side Door w/Window, 24" Front Aluminum Diamond Plate, Telescoping Padded Dividers, Single Enclosed Rear Door, Swing Out Saddle Tree, 5 Bridle Hooks, 2 Blanket Bars, Caulk Pkg, Floor Mats, Rubber Dock Bumper, LED Lights, Smooth Aluminum Fenders, Silver Modular Radial Tires, 4 Wheel Electric Brakes.

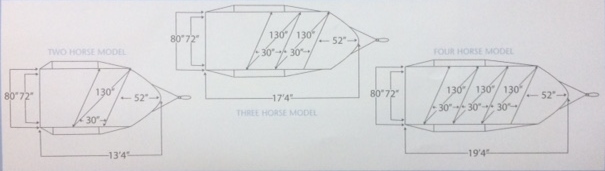

Open File Below for Printable Wrangler Plus Spec Sheet

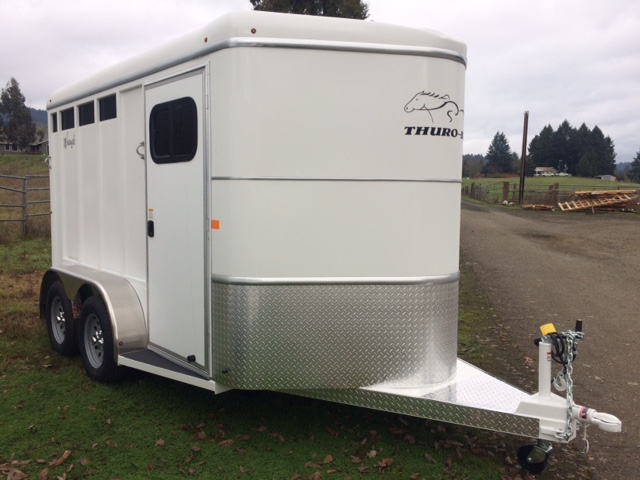

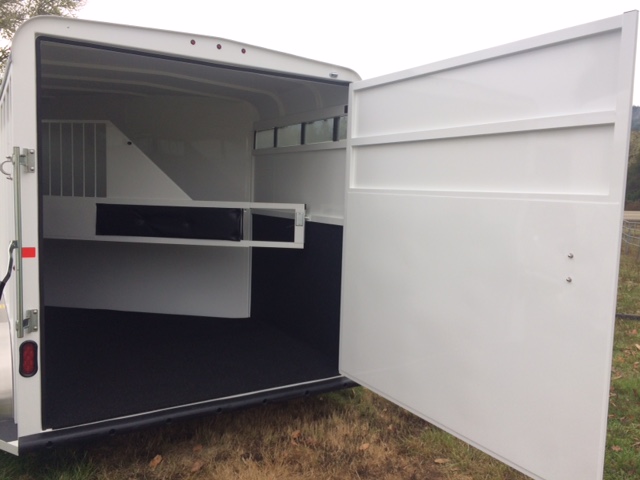

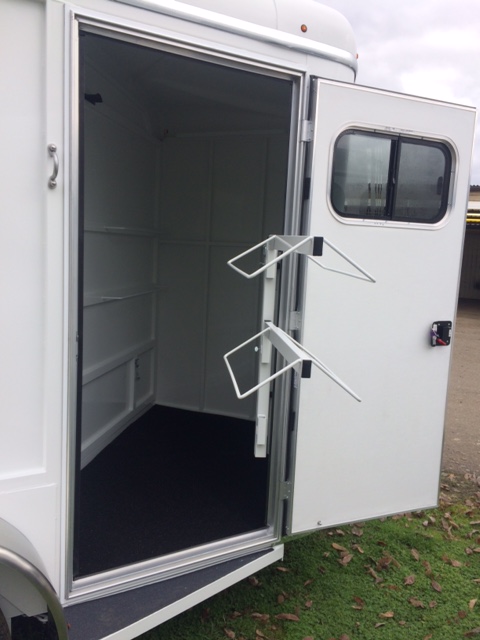

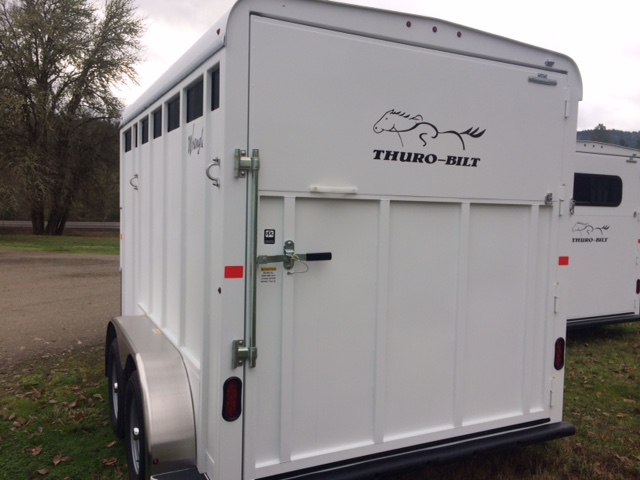

These pictures show wall mats, which is an option, not standard in the Wrangler Plus.
